[Setting overview]
(1)Register the MAC address of PDA using IPH-CE in router from PC connected with router in receiving side, and set fixed IP address when connected with router.
(2)Please register 17276 in TCP port number from PC connected with router in receiving side when using only one PDA with IPH-CE.
(3)Please register
Pasotel2 = (TCP port number)17276 +(Pasotel2 extension number)in TCP port number when using only multiple PDA with IPH-CE.
(Pasotel2 extension number is the last number of PDA IP address)
*PDA IP address can be set in router.
For example, If the IP address is 192.168.0.201in PDA, the extension number is 201.
[Example]

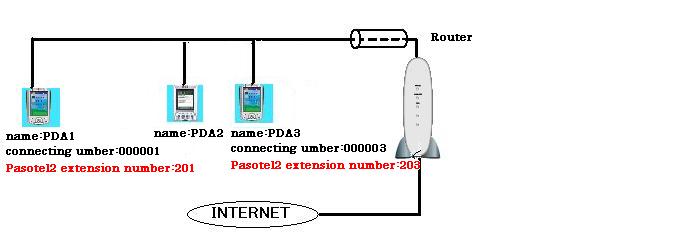

if Pasotel2 extension number is 201 in PDA1
(TCP port number 17276) + (Pasotel2 extension number 201) = Pasotel2 TCP port number 17477
[Please register 17477 in Pasotel2 TCP port number in router.]
[how to confirm MAC address of PDA]
(hp h4150)
1.Tap on [start] ->[settings] in PDA
2.Tap on [system] ->[asset viewer]
3.MAC address of PDA can be confirmed by selecting [wireless LAN].
4.Register this MAC address in router.
* How to confirm MAC address is decided by PDA manufacturer.
Please refer to instruction book of PDA manufacturer if the confirming method is different from the above mentioned one.
|
