< start >
1.Double-click the shortcut icon of CSs on the desktop.
2.If the icon of CSs in the task tray ,the start completed.
You can connect with CSp.
If you are the user of windowsXP ,you have to set the firewall.
[notice]
* Start CSs when IPH/FTVs has been started in the task tray.
* The camera selection dialogue will be displayed when you start it during a Picture telephone by Pasotel2(IPH) or in the camera mode.
if two USB camera are connected , select the camera which is not used by IPH.

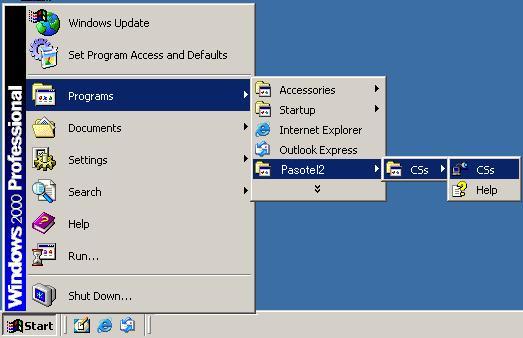

* you can start it by clicking the [CSs] of [CSs] in [start menu]-[program]-[P2 system].
|
|
|
| < Importing number of image settings > |

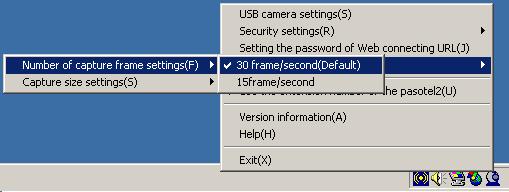

you can stop the PC load ,please set the capture frame value [15 frame/second] when the PC load is high.
1.right-click the task tray icon of CSs ,and the pop-top menu will be displayed.
2.Select the frame value from [setting of capture frame value(F)]
|
|
|
| < Importing size of image settings > |

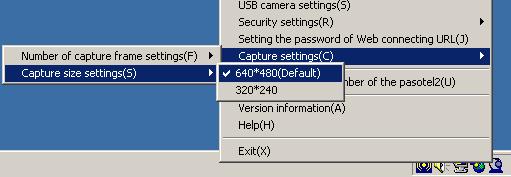

you can stop the PC load ,please set the capture size [320x240] when the PC load is high.
1.right-click the task tray icon of CSs ,and the pop-top menu will be displayed.
2.click capture size you want to set from [setting of capture size(S)] of [setting of capture].
|
|
|

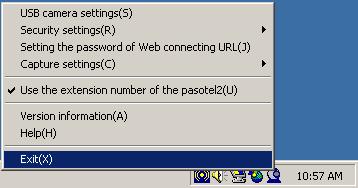

1.right-click the task tray icon of CSs.
2.select the [end x] from menu, the CSs will end when the task tray icon disappears.
|
|
|
| < using the extension number of CSs > |
|
|
* you have to set the router if you want to use the extension number of IPH to connect with CSs.
* check the box of [use extension number] in the setting of IPH.
Please register the CSs TCPport
(TCP port number 17000) +(IPH extension number)=CSs TCPport number
please refer to the setting of router for details.
|
|
|
| |
| < setting of PC > |
| 1. | If your OS is Windows98SE, ME, 2000(pro) |
| 1-1 There is no setting if you have not installed the security software. |
| 1-2 Please set the security that can be used in Pasotel2H when you have installed the security software. |
| 2. | If your OS is WindowsXP. |
< with Service Pack 2 >

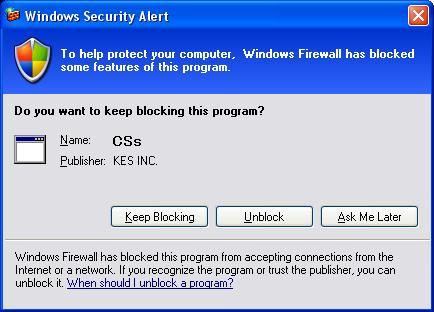

please select the [cancel the block],if the [important caution of Windows security] is displayed.
< the adding setting of the WindowsXP firewall if the PC has not been installed with service bake 2 >

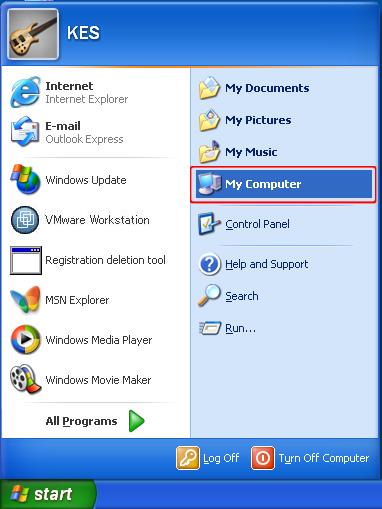

1.click [my computer] from [start].

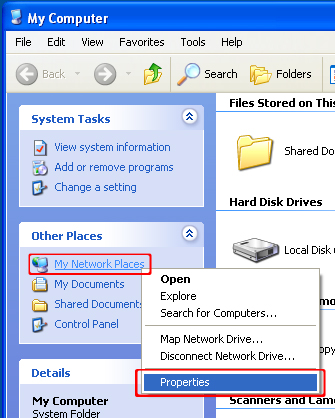

2.right-click the click of [my network] and select the property if the image of my computer is displayed.

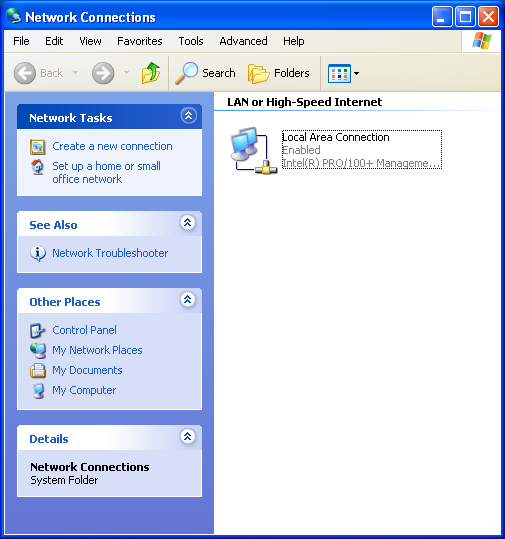

3.the window of network connection will be displayed.

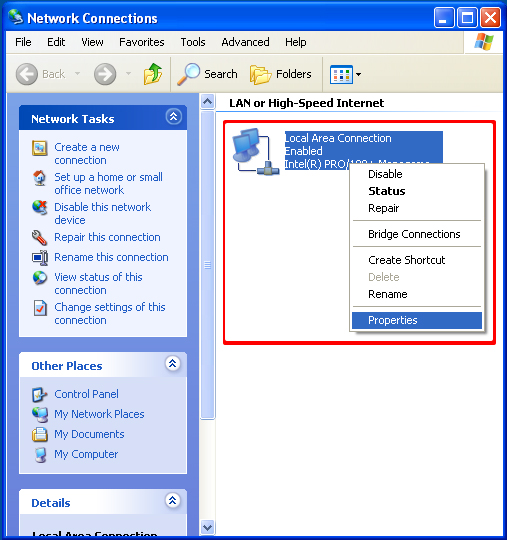

4.right-click the icon of local area connection (the connection you are using) and select the property.

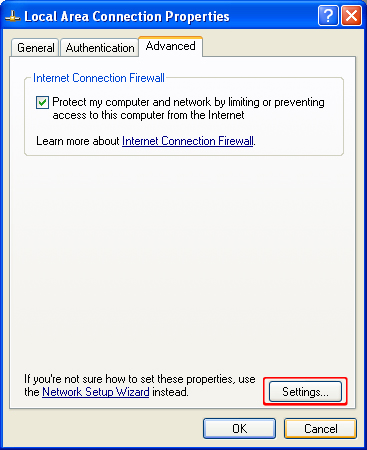

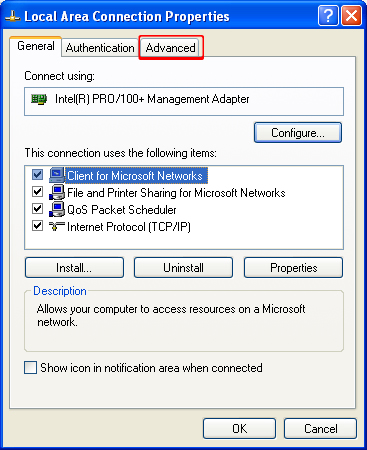

5.click the tap of detailed setting when the window of property is displayed.
6.if you uncheck the firewall , the CSs will can be used and the function of firewall will be invalid.
if you want to activate the function of firewall and to use CSs ,please click the setting button.

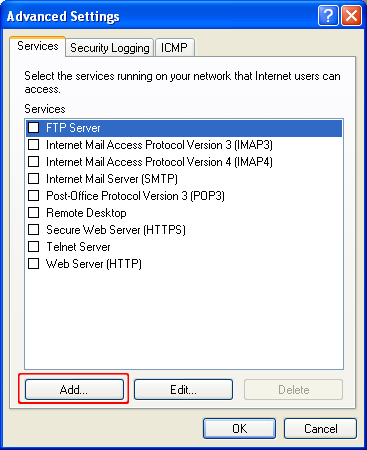

7.when the detailed setting window is displayed, click [add] button .

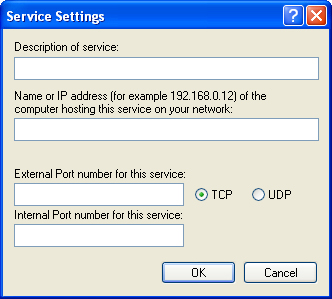

8.the window of service setting will be displayed.

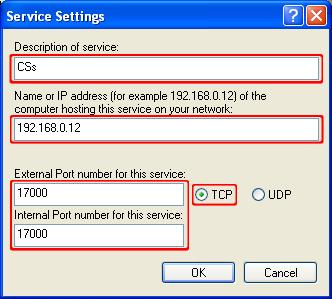

9.input items according the followings.
* IP address can be any suitable value.
* select TCP.
* if you are using the extension number input the sum of 17000 and
extension number into [the outside port number of the service] and [the inside port number of the service].
example) if you extension if 10 please input 17010.
|
|
|
|
 |
|
