[available environment, settings for CF]
| Internet environment |
Wireless LAN, ADSL(Asymmetric Digital Subscriber Line), CATV(Community Antenna Television),
FTTH(Fiber To The Home) and etc. |
| PC environment(available environment, settings for IPH) |
| O S |
Windows
98SE, Windows Me, Windows 2000 Pro, Windows XP |
| C P U |
Intel Pentium3
800MHz (recommended above 1.2GHz) |
| Memory
|
Recommended memory is above 128MB. |
| LAN/network |
TCP/IP (using TCP port : 18000) |
| Hard disk |
Recommended hard disk is above UltraDMA66 with free space larger that 15MB. |
|
| Check items!
Please confirm the following items after reading the above contents. |
Is it connected to the broadband of wireless LAN, ADSL, CATV, FTTH and etc?Are you using PC with windows? (it is not available for Macintosh)
Is the CPU of your PC above Intel PentiumIII 800MH?
Is the free space in your hard disk larger than 15MB?
Is your using OS is in the following items?
Windows98SE WindowsME Windows2000 WindowsXP
|
< Computer settings >
|
|
|
|
1. |
OS is Windows98SE, ME, 2000(pro) |
|
1-1 Setting is not necessary if security software is not installed.
1-2 If security software is installed, please set CF be able to use in security settings.
|
|
2. |
OS is windowsXP |
|
< with service pack 2 >

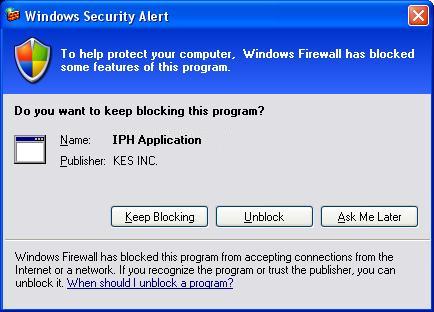

If [important warning of Windows security] is displayed, please select [unlock].
< WindowsXP firewall additional settings when service pack 2 is not installed on PC >
* If OS is WindowsXP, CF cannot be using without adding firewall settings.

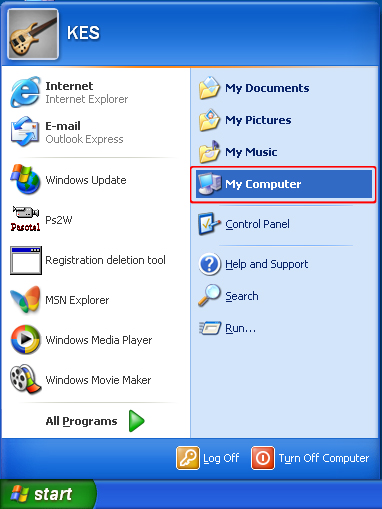

1.Click on my computer from start.

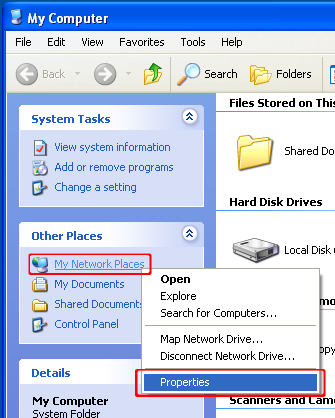

2.When window of my computer is open, right-click on my network icon and select property.

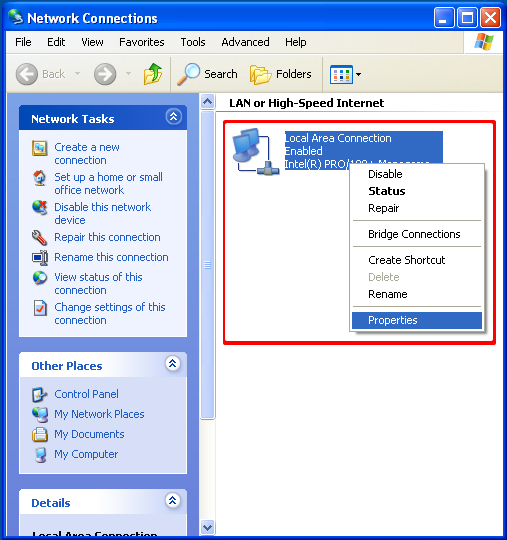

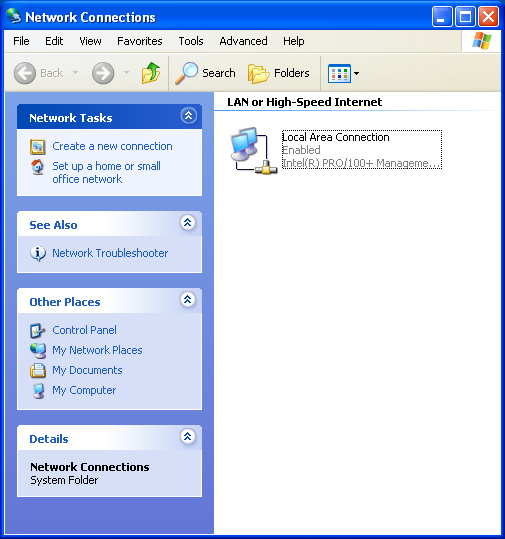

3.Network connection window will be open.
4.Please right-click on Local area connection(using connection) icon and select property.

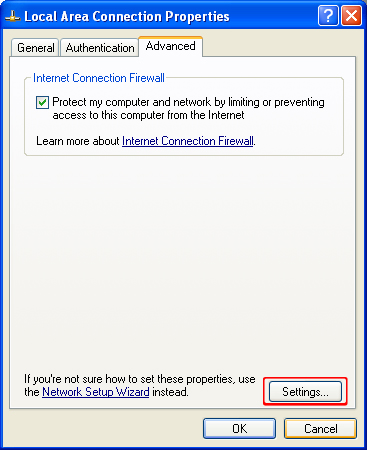

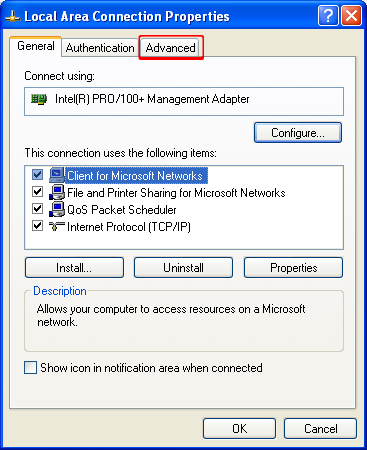

5.Please click on detailed setting tab when property window is open.
6.Uncheck the firewall and CF can be usedFirewall is also invalid.
Please click on setting button to activate Fire wall function and Use CF.

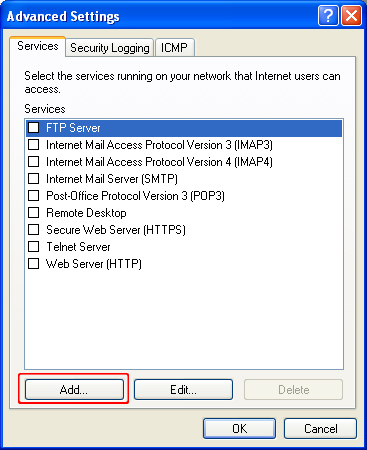

7.Please click on add button when detailed setting window is open.

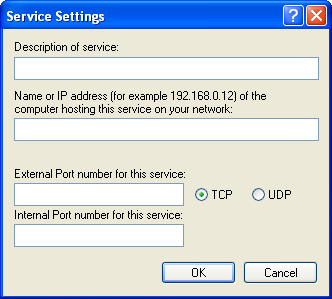

8.Service setting window will be open.

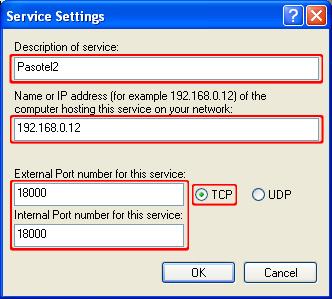

9.Please enter the items shown in the following figure.
10.Click on OK button and it will finish.
|
|
< Network >
* Network available for CF is network using wireless LAN ADSL,VDSL,XDSL,FTTH ,CATV.
* It can be used if the connection method is using TCP/IP.
* CF cannot be used if firewall and proxy server are in network.
[Please contact with network administrator, and internet service provider]
[PC setup]
< Notice of installation >
| |
| 1. | After installation, when PC restart message is displayed, please click on OK.If you do not restart your PC, CF will not appear in task tray and IPH can not run. |
| 2. |
In DEP support PC by hardware, installation may be failed if error occurs during IPH installation.In this case, please refer to supplementary explanation. |
< installation >
1. Please run IPH/FTVs/CF setup[ IPH.exe].
2. IPH setup window will be open.
Install it following the instruction.
3. Please click on yes button when dialog box is displayed.
[notice] With WindowsXP SP2
If [important warning of Windows security] is displayed, please select[unlock].
Run CF and CF icon will be displayed in task tray.
< run >
1. click on CF from [start menu] - [program] - [Pasotel2] - [CF].
2. CF icon will be displayed in task tray.
3. Double click on CF icon on desktop and CF will run.
[Notice]
If internet security soft of symantec company has been installed, message will be displayed when run CF. Please select allowing CF connection.
< product usage registration >
| 1. |
 |
Click on registration number application button and a mail will be open. Please send it.
Product usage registration number will be sent to your mail address automatically for free.
(Product usage registration number and TV telephone number are written in the reply mail.)
[Notice]
| 1 : |
If a mail is not open even you clicked on registration number application button, please send mail to p2rege@kin.co.jp titled with registration number application. |
| 2 : |
Reply mail cannot be sent to nonexistent mail address. |
| 3 : |
Reply mail may be not sent at once according to the status of network. |
|
| 2. |
|
Double click on CF icon on desktop, CF player will run and registration dialog will be open.
Enter the obtained product usage registration number and mail address, then press registration button.
Product usage registration completed will be displayed.
Product usage registration is completed and Pasotel2 can be used.
|
< How to register connecting destination connecting number >

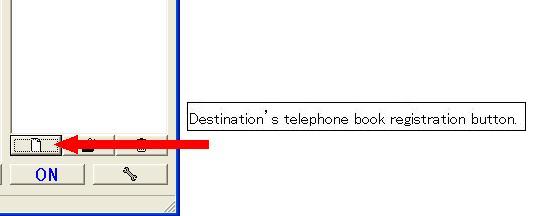

1. Click on telephone book registration button.
2. Enter the name, connecting number of destination PC/PDA(connecting number).
3. Enter extension number. (extension number exists)
[notice]use extension number in settings is the extension number of your own PC.
If you check extension number but you do not use it in your own PC, you cannot receive any call.
4. Please do not enter password.
| [How to register destination PC with extension number] |
[How to register destination PC without extension number] |
 |
 |
| [How to register between members of extension number] |
|
 |
|
< MCT2(MCT.TOOL2) >
1.Click on [start menu] - [program] - [Pasotel2] - [IPH] - [MCT, TOOLS] - [MCTSetup]and install it.
2. After installation, click on [start menu] - [Pasotel2] - [program] - [IPH] - [MCT,TOOL2] to run it,
and the [MCT, TOOL2] will be in task tray.
(It will run automatically when restart PC next time)
[About MCT2, please refer to "7.MCT TOOL2"in help.]
* [MCT,TOOL2] is used only in Korea or in environment using IPH extension number,
please end it in other environment.
*you can use extension number and key number in router used environment after running [MCT, TOOL2].
*Please run [MCT, TOOL2] full-time in PC which key number is registered.
*If you do not run [MCT, TOOL2] in PC which key number is registered,
the reception of extension number using key number from external.
[operation]
< How to run player >
1.Click on CF icon on desktop
< How to connect >
* Destination PC/PDA(connecting number) has been registered in telephone book.
1.select destination PC/PDA in telephone book and click on connecting button.
You can connect it.
2.You can also make a call by double-clicking it in telephone book.
[important]the reason why you cannot connect destination CF
1.destination PC/PDA(connecting number) is power-off.
2.there is no icon of CF in PC task tray of destination PC/PDA(connecting number).
3.you cannot receive message if you do not disable the firewall or make additional settings in WindowsXP
Please refer to [PC WindowsXP Fire wall additional settings].
< How to receive. >

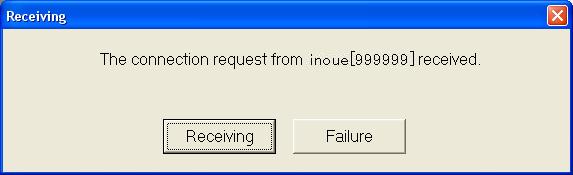

1. Incoming confirming dialog display is blinking and incoming music is sounding
when receiving a connecting.
2. Please click on receive to receive or denial not to receive the connecting.
Automatically answering settings.

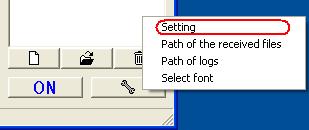

1. Right-click on CF in task tray and select [setting] in menu, setting dialog will be displayed.
2. Check [automatically answering].
Call can be received if there is a incoming call.
< take character chat >

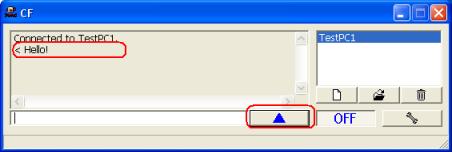

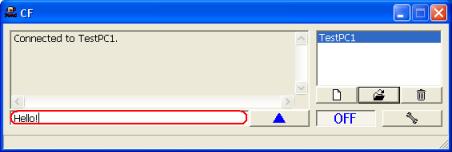

1.Enter sending characters in sending text box.
2.Press on sending button and characters in sending text box will be sent out. (" < " :sending )

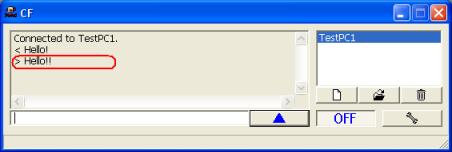

3.Received characters will be displayed in log. (" > " :receiving)
|
