 FTVp-CE

Top
Detailed instruction book
PDA environment setup operation
PDA setup how to watch TV
Installation [operations during transmission]
start
How to register on destination PC

[available environment, settings for FTVp-CE]

 Important(notice before using FTVp-CE)
If Battery runs out when installing hardware in PDA,
PDA will be reset and all installed soft and information
(connecting number) will be lost.
(all data in PDA will be lost if 3 days passes since battery charge warning)
 Important (how to avoid lost of registered information and soft )
  • Please avoid battery exhaustion.
       (Please refer to the instruction book of you using PDA for details.)
  • Please backup PDA using backup soft in attached CD.
       (save PDA data in external memories such as PC, SD card and etc. )

  • Internet environment
    • Wireless LAN, ADSL(Asymmetric Digital Subscriber Line), CATV(Community Antenna Television), FTTH(Fiber To The Home) and etc.
  • Computer environment(available environment, settings for FTVp-CE)
    • Types type PocketPC2003/SE(QVGA screen) (ARM series) on-board type
    C P U recommended above 500MHz
    User area using about 500KByte
    Memory free space above 3M is necessary
    LAN/network network cards according to your using PDA(using TCP port: 17276 - )
  • Check items! Please confirm the following conditions after reading the mentioned contents above.

  • Is it connected to the broadband of wireless LAN, ADSL, CATV, FTTH and etc?
  • Are you using PDA is PocketPC2003/SE (ARM series)?


    • < network >
      *Broadband network such as Wireless LAN, ADSL, VDSL, XDSL, FTTH line, CATV and etc.
      *How to connect using TCP/IP protocol
      *FTVp-CE cannot be used in network with firewall or proxy service.
      [Please contact with network administrator, internet service provider for details.]

    [setup]
    < installation >
      1. Download FTVp-CE from [FTVp-CE download site].
      2. Install it following the [how to install FTVp-CE]

     < start >
    FTVp-CE is a soft only for landscape screen. Please set screen setting to [landscape].
    Go back


    < How to register on destination PC(connecting number) >
      1. Select [registration] ->[destination registration] from tool bar.
      2. Select new button.
      3. Enter name and telephone number of destination PC/PDA(connecting number).
      4. Enter extension number if extension number is been used in destination PC/PDA(connecting number)
      5. Enter the password if password is set in destination PC/PDA(TV telephone number)
      * Please enter half-width number in connecting number/extension number/password.

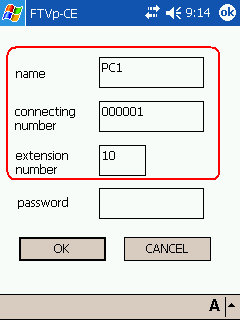

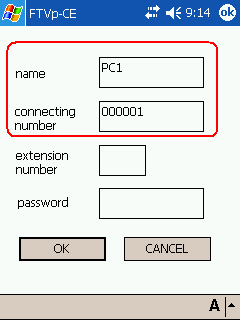

    [How to register destination PC/PDA with extension number ] [How to register destination PC/PDA without extension number ]

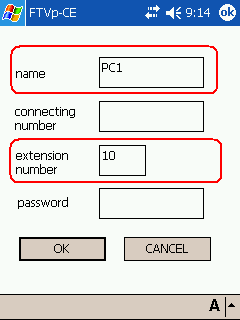

    [How to register between members of extension number]
    Go back


     [operation]

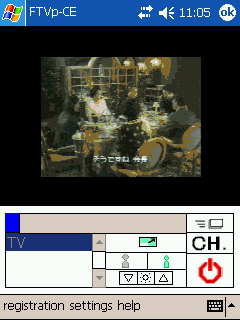

    < Hot to watch TV >
      1. Select destination PC/PDA(connecting number) from address bar.
       Tap on connecting button to connect IPH.(status becomes yellow)


      2. TV image will be displayed.



    [important]the reason why you cannot connect destination PC(connecting number)
       1. Internet is not connected.
       2. IPH in destination PC (connecting number) is not started.
       3. destination PC(connecting number) is on watching.

    < operation during transmission >
    TV channel change
      1. Tap on [CH] button and TV channel list will be displayed.

    2. Select your preferred channel and change to it.


    Transmission rate change
      *If the voice breaks up, Please click on transmission rate button and turn down the transmission rate.
    *If click on [transmission rate] and turn up it, the fast motion video can be obtained in high rate network.

    Image quality change
      *Image resolution can be changed via [small size] button.
    *Tap on button when select it, detailed image quality change is available.

    Display change
      *Press [full screen] button when large size button is selected, image will be displayed in full screen.
     (Tap on screen in fill screen mode, you can return to the normal screen.)

    Brightness settings

    *Set brightness of receiving image.
     Press + button and image will become bright.
     Press - button and image will become dark.
     Press middle button and it will return to standard brightness.

    [notice]
      FTVp-CE is a TV watching service using internet.
      It is different from normal TV, voice may delay caused by crowed internet.

    < FTVp-CE connecting number for connecting test >(TV telephone number of PC with TV tuner)
    (destination Japan)connecting number[999070]
    connecting number[010107]
    connecting number[999047.110]
    connecting number[999075.80]
    connecting number[999090.30]
    Automatic answering TV telephone connecting test time: connecting test is available for 24 hours.
    (you can watch TV for 2 minutes in connecting test)
    Go back


    =notice=
    1. The copyright of this software belongs to Kyushu electronics system Inc., Japan.
    2. Please note that we will not be held responsible for any results of using this software and manual.
    3. Specifications of this software and matters in manual may be changed without notice
  • Manufacturer(Japan) company name: Kyushu electronics system Inc. E-mail :pasotel2@kin.co.jp
