[Settings to use FTVs]
[notice]
Performance will be unstable in PC with multiple TV tuners.
Please remove device drivers of unused TV tuner.
Please contact with your TV tuner manufacture from removing methods.
< TV tuner settings >
Making channel list is necessary in initial status.
*Channel settings will be displayed only when TV tuner is detected. ( it will not be displayed during transmission)
Open TV tuner settings dialog
1. Click on [start menu] - [Pasotel2] - [TV tuner settings]
2. [TV tuner settings] dialog will be open.
3. Enter country code of your TV tuner. (Japan:81, Korea:82)
4. Select antenna or cable.
5.
Automatically detect channel or add it individually.
6. Click on OK button and dialog will be closed.
The creation method of a channel list (automatic detection)
*All channels will be scanned in automatic detection and it cost much time.
*All channels may not be detected in automatic detection.
*The channel which was not able to be detected automatically can be added manually.
1. Click on scan button.
2. Channel number will be displayed in scan button and detected channels will be listed.
Please wait until scan is completed.
3. Scan button will return to [scan] when all channels has been detected.
*Display name is not in automatic detection. Please register it via edit button.
Detected channel number in automatic detection is 1ch - 62ch of antenna and 1ch - 62ch of cable TV.
How to edit channel list(manual registration)
1. Click on add button.
[channel settings] dialog will be opened.
2. Enter channel number and display name, then click on Ok button.
* Please add necessary channels as above.
Channel information change
1. Select change channel from list.
2. Click on edit button.
[channel settings] dialog will be opened.
3. Change channel number and name, then click on OK button.
| |
< Audio input settings of PC with TV tuner >

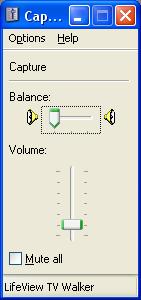

TV audio settings when using USB audio
[notice]Please connect audio output of TV tuner to line input of PC and set it when USB cannot be used.
1. Run player from IPH/FTVs icon from desktop.
2. Click on setting button and select [audio settings] from menu.
3. Select [USB audio] in audio recording device.
|
|

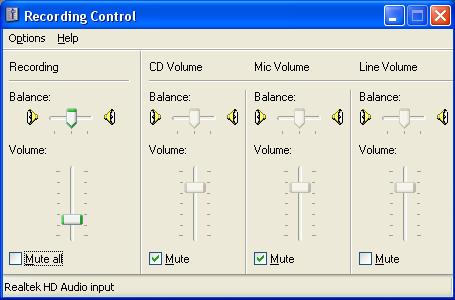

Line input settings
1. Run player from IPH/FTVs icon on desktop.
2. Click on setting button and select [audio settings] from menu.
3. Select [line input] in audio recording device.
4. Click on [detailed settings].
5. Volume control will be opened and select line input.
|
|
