Client (vewer) software featured with variety of functions

Standard client software is the application software to fully draw LsBox functions like playback/saving of video/coice transferred from LiveServerLsBod, playback/savingvby client PC, manipulating equipment like camera,connected to LsBox. 2 types of software, 6 screens standard, 30 screens standard, are available. Also possible to develop customized client software in compliance with customerfs application requirement, using SDK (software development kit).


6 screens standard client software
(type No. : LSBOX-CW6)

30 screens standard client software client 3
(type No. : LSBOX-FMF)

Working environment
C P U Pentium III (over 1GHz) recommende
Memory 512MB (min. 256MB) recommended
H D D Blank space over 20MB,for video recording, over 1GB for the purpose
V G A Resolution over 1024x768 full color (24bit, 32bit)
Network TCP/IP protocol (100BASE-T x Full Duplex) compliance recommended
Compliant OS WindowsXP Profaessional(Recommended), Windows XP Home,
Windows 2000 Professional

Main functions of 6 screen standard client





Screen configuration

6 screens (default) Single screen Dual screen
3 screens 4 screens
Selectable from 1, 2, 3, 4, 5, 6 screens. Possible to hide tool bar, buttons and watch simple screen.

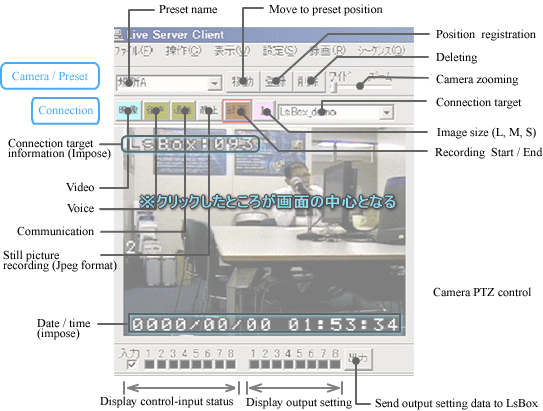

Other functions

Recording / playback

* Manual recording start / stop

* Recording start triggered by event occurrence coordination with sensor

* Searching into record files by date / time, camera number, and playback

* Possible to optimize
   the compression rate
   / image quality according to application

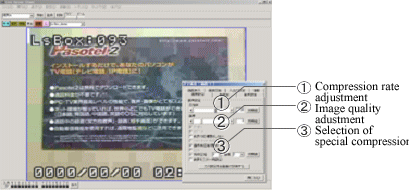

Compression rate / image quality control

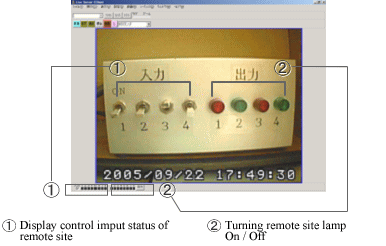

Control input / output


Motion sensor
Detects motion in the designated area    1.Standard screen    2.Differential image screen

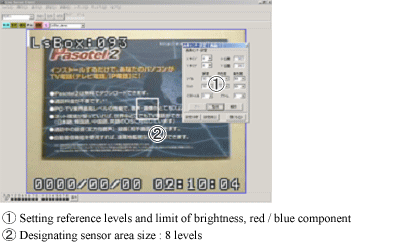

Image sensor
Detects the transition of brightness, color, etc. of the designated area



30 screens standard client (Client 3/LSBOX-CWF)

30 screens (default)

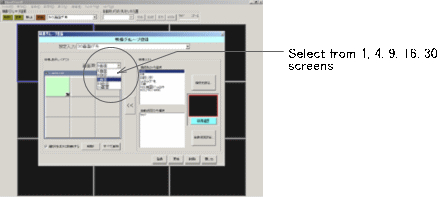

Selecting number of screens





Difference against 6 screens software
  • Possible to create multiple screen patterns in compliance with requirement by situation properly, and save
  • Possible to connect / switch per each pattern created, in batch process, and circulate patterns to switch automatically
  • Also possible to simplify userfs operation, saving the trouble some booting procedures by automation of connection for front pattern
  • By setting the automatic connection at booting, full screen will be displayed instantaneously and camera image will be displayed
